Viewer messaging API¶

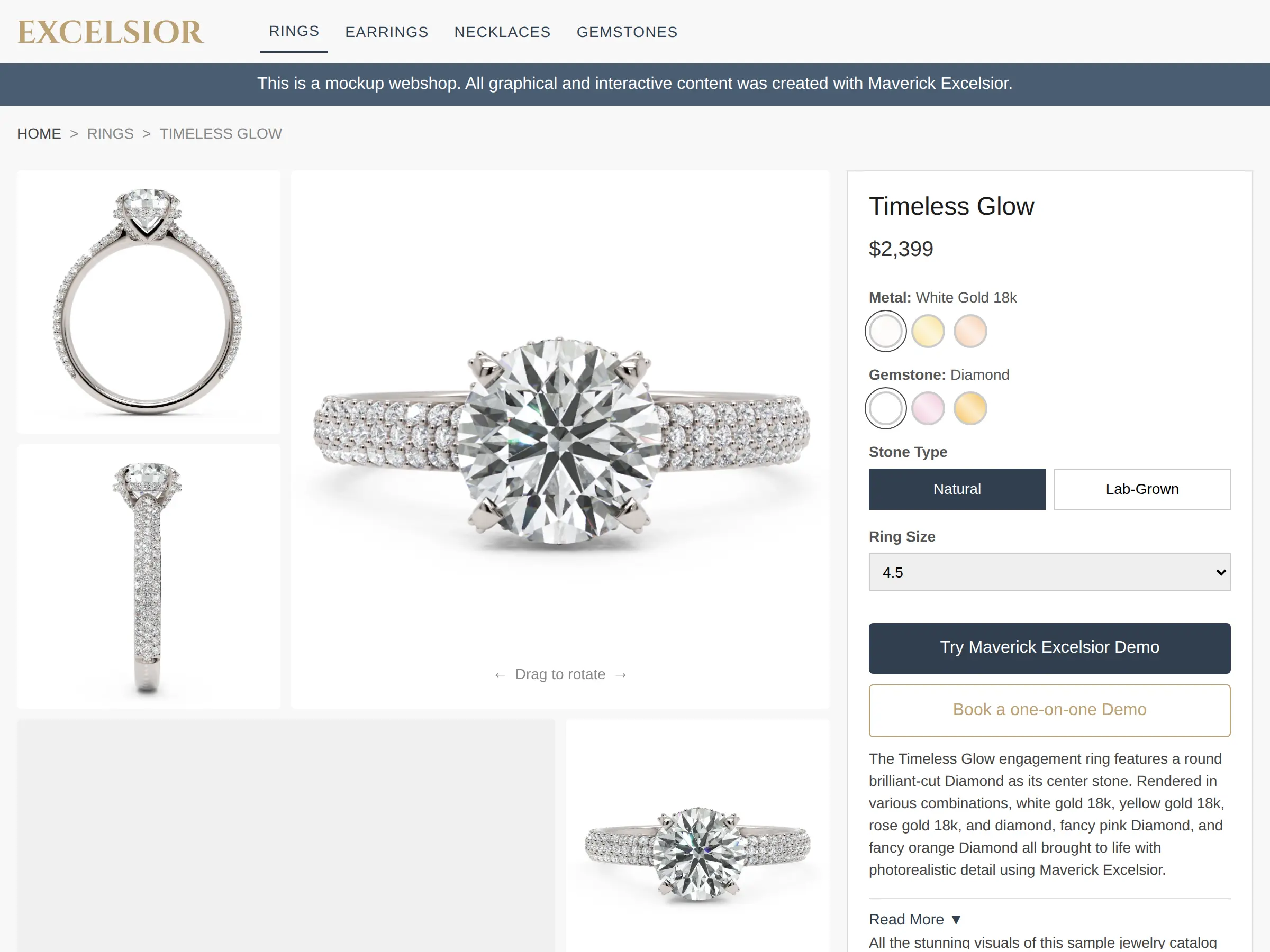

The Maverick Excelsior Viewer is a lightweight, embeddable 3D renderer. It loads .webex scenes and renders them in real time with physically-based materials. This page is the reference for driving an embedded viewer from JavaScript.

For how to embed the viewer in your page (CDN, canvas setup, iframe alternative), see Hosting a viewer.

Communication model¶

JavaScript and the viewer talk over two one-way string channels:

Direction	Function	Description
Page to viewer	`wasm_i(op, d0, d1, d2)`	Send a command
Viewer to page	`wasm_o(op, d0, d1, d2)`	Receive an event

All four parameters are strings. Trailing empty strings may be omitted.

Warning

If you have older integration code that calls window.webex_in(...), migrate it to the wasm_i interface documented here.

Wiring the channels¶

// Call once after Module.onRuntimeInitialized fires.
window.wasm_i = (op, d0, d1, d2) => {
  Module.ccall('wasm_i', null,
    ['string', 'string', 'string', 'string'],
    [op, d0 || '', d1 || '', d2 || '']);
};

// The viewer calls window.wasm_o directly; dispatch it as a DOM event.
window.wasm_o = (op, d0, d1, d2) => {
  window.dispatchEvent(new CustomEvent('wasm_o', {
    detail: { op, d0, d1, d2 }
  }));
};

window.addEventListener('wasm_o', (e) => {
  const { op, d0, d1, d2 } = e.detail;
  // Handle events...
});

Authentication¶

api_key¶

Must be set before loading any scene; it encodes the domain allowlist that open_scene URLs are checked against. Provide it at startup via Module.json.api_key or send it explicitly:

wasm_i('api_key', 'ak_live_xxxxxxxxxxxxxxxx');

webex_shortcode¶

Load a published scene by its share shortcode instead of a raw URL (the w= parameter of viewer links):

wasm_i('webex_shortcode', 'AB12CD');

Scene lifecycle¶

open_scene¶

wasm_i('open_scene', 'https://assets.example.com/ring.webex');

The URL is validated against the API key's domain allowlist before fetching. Repeated calls with the same URL are ignored.

Event	d0	Meaning
`open_scene_starting`	filename	Loading has begun.
`open_scene_progress`	percentage	Download progress, 0 to 100.
`open_scene_ready`		Scene decoded; warmup begins.
`open_scene_complete`		Scene fully loaded and interactive.

close_scene¶

wasm_i('close_scene');

Unloads the current scene and returns the viewer to its empty state.

Scene controls¶

Command	d0	Description
`set_quality`	`medium` / `high` / `ultra`	Quality preset. medium: base geometry, no effects. high: better geometry plus reflections. ultra: best geometry, ambient occlusion, reflections, and glare.
`set_clear_color`	`black`, `white`, `#RRGGBB`, or `RRGGBB`	Background clear color behind the scene.
`set_autospin`	`0` / `1`	Continuous automatic rotation.
`set_infotag`	`0` / `1`	Information label overlay.
`zoom`	integer delta	Camera zoom. Positive zooms in, negative zooms out.
`capture`		Asynchronously capture the current frame. The reply arrives as a `capture_data` event whose d0 is a base64 JPEG data URI (max 512 px, quality 85). Intended for thumbnails.

Materials¶

apply_mtl¶

wasm_i('apply_mtl', 'metal', 'White Gold 18k');

Parameter	Description
d0	Material family: `gemstone`, `metal`, `opal`, `pearl`, or `plastic`.
d1	Material name within the family. See Material and ambience names; names are matched case-insensitively.

The material is applied to every part of the model that belongs to the family. No response event is emitted.

Properties¶

set_string and get_string¶

wasm_i('set_string', '::globals', 'globals_ibl_angle', '45.0');
wasm_i('get_string', '::camera', 'camera_hfov');

Parameter	Description
d0	Node: `::globals`, `::camera`, `::render_pipeline`, `::animation`, or a layer name.
d1	Property USTR name, e.g. `globals_resolution_w`. See Scene properties (USTR).
d2	(set only) New value as a string.

get_string replies with a get_string event carrying d0 = node, d1 = ustr, d2 = current value. After a set, the render restarts to reflect the change.

The live camera can be driven through the virtual properties on ::camera (tracker_cam_theta, tracker_cam_phi, tracker_cam_dolly, tracker_cam_pan_x, tracker_cam_pan_y, tracker_cam_hfov), which read and write the on-screen camera directly.

Message reference¶

Commands (page to viewer)¶

Command	d0	d1	d2	Description
`api_key`	key			Authenticate; sets the scene domain allowlist.
`webex_shortcode`	shortcode			Load a published scene by shortcode.
`open_scene`	URL			Load a `.webex` scene.
`close_scene`				Unload the current scene.
`set_quality`	preset			medium / high / ultra.
`set_clear_color`	color			Background color.
`set_autospin`	0/1			Auto rotation.
`set_infotag`	0/1			Info label.
`zoom`	delta			Camera zoom.
`capture`				Frame snapshot.
`apply_mtl`	family	name		Apply a library material.
`set_string`	node	ustr	value	Set a property.
`get_string`	node	ustr		Query a property.

Events (viewer to page)¶

Event	d0	d1	d2	Description
`open_scene_starting`	filename			Loading began.
`open_scene_progress`	percentage			Download progress.
`open_scene_ready`				Scene decoded, warming up.
`open_scene_complete`				Scene interactive.
`get_string`	node	ustr	value	Property query reply.
`capture_data`	data URI			Base64 JPEG of the current frame.

Integration example¶

<!DOCTYPE html>
<html>
<head><title>WebEx Viewer</title></head>
<body>
  <canvas id="webex-canvas" style="width:100%;height:100vh;"></canvas>
  <script>
    var Module = {
      canvas: document.getElementById('webex-canvas'),
      json: { api_key: 'ak_live_xxxxxxxxxxxxxxxx' }
    };

    Module.onRuntimeInitialized = () => {
      window.wasm_i = (op, d0, d1, d2) => {
        Module.ccall('wasm_i', null,
          ['string', 'string', 'string', 'string'],
          [op, d0 || '', d1 || '', d2 || '']);
      };

      window.wasm_o = (op, d0, d1, d2) => {
        window.dispatchEvent(new CustomEvent('wasm_o', {
          detail: { op, d0, d1, d2 }
        }));
      };

      window.addEventListener('wasm_o', (e) => {
        if (e.detail.op === 'open_scene_complete') {
          wasm_i('apply_mtl', 'metal', 'White Gold 18k');
          wasm_i('set_quality', 'ultra');
          wasm_i('set_clear_color', '#F0F0F0');
          wasm_i('set_autospin', '1');
          wasm_i('set_string', '::globals', 'globals_ibl_angle', '45.0');
        }
      });

      wasm_i('open_scene', 'https://assets.example.com/ring.webex');
    };
  </script>
  <script src="webex-viewer.js"></script>
</body>
</html>
